CATV

  • Aluminum Mounting Plate
    Brand:
    Model:
    Brief:
    Provides a mount for various attachments including Cable Suspension Clamps.
    Extruded from heavy-duty Type 3003 Aluminum.
  • Tangent Support Clamp
    Brand:
    Model:
    Used to secure figure 8 cable to poles.
    Clamp plates and J Hooks are extruded from Aluminum.
    J hooks are designed to dig into poles when installed, to prevent movement during tensioning of cable.
    Eliminates the need to pre-strip messenger wire.
    Bolt size accommodated is 5/8".
     "> Brief:
    TANGENT SUPPORT CLAMP .109" TO .134" FOR 5/8" BOLT
    Used to secure figure 8 cable to poles.
    Clamp plates and J Hooks are extruded from Aluminum.
    J hooks are designed to dig into poles when installed, to prevent movement during tensioning of cable.
    Eliminates the need to pre-strip messenger wire.
    Bolt size accommodated is 5/8".

  • C Span Clamp
    Brand:
    Model:
    • All components are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
    • Manufactured in the United States.
    • Bolt and nut are formed from Grade 2 Steel.
    • Bolt and nut are hot dip galvanized to meet ASTM Specification A153, Class B3.
    • Bolt is 3⁄8" diameter for additional strength.
    • Attaches to strand sizes ranging from 1⁄4" (6.6M) to 3⁄8" (10M).
     "> Brief:
    • Used in drop cable installations as an attachment to the strand for either accepting the bail of Drop Wire Clamps, or for wrapping the support wire of drop cable.
    • Consists of high strength Aluminum jaws, and a specially shaped bolt with square nut.
    • Jaws are extruded from 6063-T6 Aluminum.
    • The jaws are stamped from AISI 1018 Cold Rolled Steel. The stud is formed from Grade 5 hardened Steel. The nuts and washers are formed from Grade 2 Steel.
    • All components are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
    • Manufactured in the United States.
    • Supplied with two 3⁄8" x 1" Hex Bolts.
    • All components are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
    • Manufactured in the United States.
    • Bolt and nut are formed from Grade 2 Steel.
    • Bolt and nut are hot dip galvanized to meet ASTM Specification A153, Class B3.
    • Bolt is 3⁄8" diameter for additional strength.
    • Attaches to strand sizes ranging from 1⁄4" (6.6M) to 3⁄8" (10M).

  • Three Bolt Cable Suspension Clamp
    Brand:
    Model:
    Consists of two plates,and two 1/2"-13 track bolts with attached square nuts.
    Plates are 1-13/16" wide and 5-3/4" long.
    The center hole accepts 5/8" or 3/4" thru bolt.
    Hot dip galvanized to meet ASTM Specification A153.
     "> Brief:
    Used to attach strand to straight line poles.
    Accepts 1/4" (6.6M) to 7/16" (16M) strand.
    Consists of two plates,and two 1/2"-13 track bolts with attached square nuts.
    Plates are 1-13/16" wide and 5-3/4" long.
    The center hole accepts 5/8" or 3/4" thru bolt.
    Hot dip galvanized to meet ASTM Specification A153.

  • Pole Anchoring Hardware
    Brand:
    Model:
    Brief:

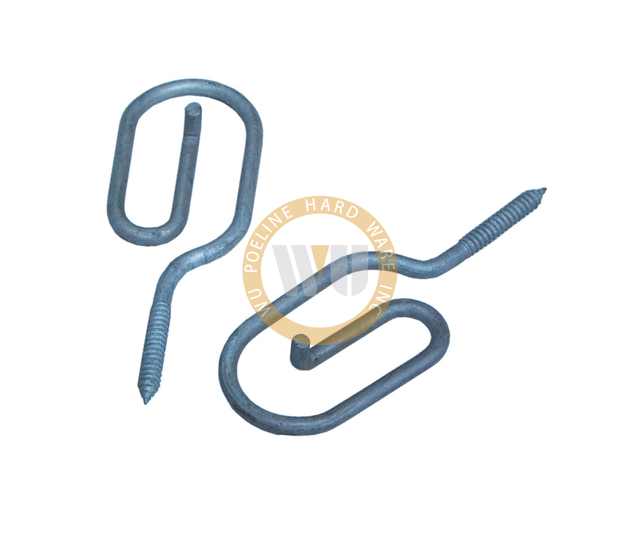

  • Q Driving Hook
    Brand:
    Model:
    Brief:

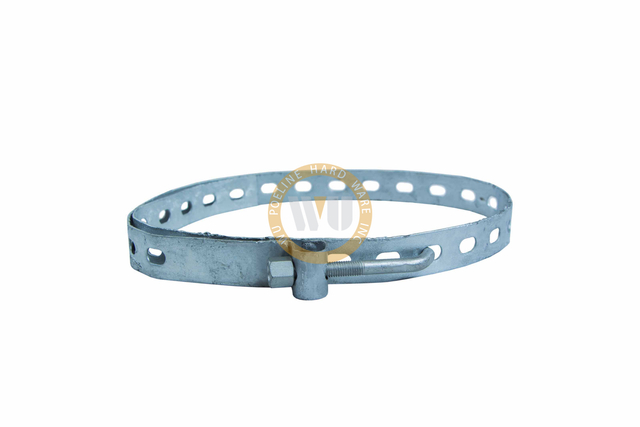

  • Adjustable Pole Belts
    Brand:
    Model:
    Brief:

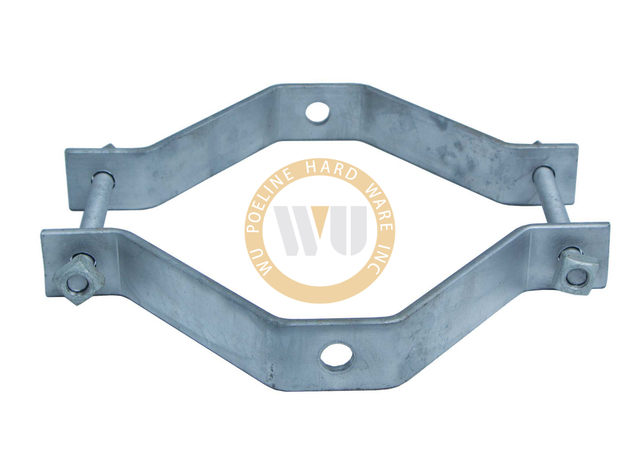

  • " V" Type Adjustable Pole Bands
    Brand:
    Model:
    Brief:
  • Adjustable Pole Bands
    Brand:
    Model:
    Brief:
  • External Clamp for 8 form cable
    Brand:
    Model:
    Brief:

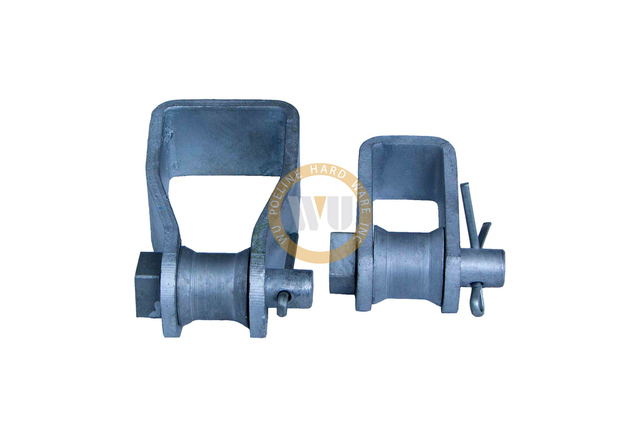

  • "D" Type Support hardware
    Brand:
    Model:
    Brief:
  • Tangent Support for double strap
    Brand:
    Model:
    Brief:
